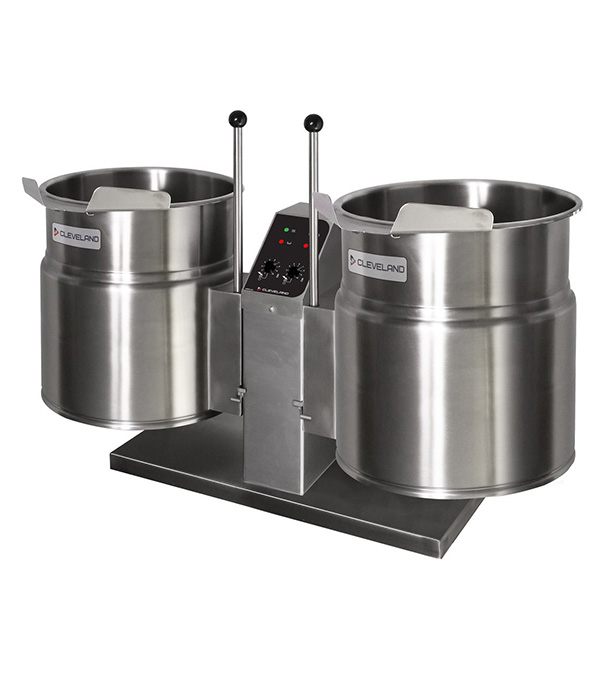

TKET12T: Twin electric steam jacketed kettle, tilting

$25,520.00

“SPLASH PROOF SERIES”, 2/3 STEAM JACKETED, 3, 6 or 12 GALLONS (11, 23 or 45 LITERS)

CLEVELAND, Twin Style Electric kettle, Table Type, self-contained, tilting. 2/3 steam jacketed, type 304 Stainless Steel kettle and supports. Jacket rated at 50 psi with Safety Valve, Permanently filled Steam Jacket, Splash Proof Solid State Temperature (±1° C) and Safety Control System in plug-in Module including L.E.D. indicators. Marine Lock. Optional Lift Off Cover.

Description

Manual Tilting
Balanced design
Self-Contained
Easily installed – needs only an electrical hook-up
Controls
Accurate, consistant solid state temperature controls (mechanical thermostate not as accurate) – less than ±1°C variance (ideal for simmering). Operating temperature range from 145° – 260°F (63°C – 127°C) Control panel includes:LED indicator for heat cycle, LED indicator for low water Power ON/OFF switch, Adjustable temperature control dial
Water Resistant Controls
Splash-proof construction
Pouring Lip
Large pouring lip for high capacity and chunky products.
Rolled Rim
Re-inforced rolled rim design prevents damage to kettle rim, eliminates “bar rim designs”
Heating Elements
Welded-in heating elements, (holds vacuum better, won’t leak or loose water)
Easily Cleaned
Kettle and all exterior surfaces are of type 304 stainless steel with an #4 finish
Pressure Gauge
Rear mounted easy access pressure gauge and pressure relief valve to prevent tampering. Color coded easy to read pressure gauge with “green” and “vent air zone”
Jacket Rating
50 psi steam jacket rating for higher cooking temperatures
Safety Valve
50 psi
Water Level Control
Solid state water level control (no sight glass gauge to break or leak)
Element Cover
Splash proof element cover with a double gasket seal
Marine Lock
Self locking marine type tilting mechanism prevents accidental spills. Balanced design makes it easy to tilt
Standard voltage
208-240 volts, 60 Hz, 3 phase, 3 wire. Model KET-6 and KET-12 are field rewirable to single phase
Steam Jacket
Steam jacket filled with treated water, venting and/or refilling is not required

Additional information

Power Input Type

Electric

Primary Power Input

208-240 V x 60 Hz x 3 PH

Accessories

316 Kettle Liner
316 Stainless Steel kettle liner for high acid food products (316-G)
Cooking Baskets
(BS)
Electrical
High wattages (HW) and special voltages
Faucet
Hot and cold (DPK) or cold only (SPK) water faucet with swing spout. Requires mounting bracket (FBKT)
Food Strainers
(FS)
Kettle Markings
(KM)
Lift Off Cover
(CL)
Measuring Strips
(MS)
Spray Hose
(PRS-K)
Stand
Stainless Steel equipment stand with drain drawer and splash shield (ST-28)
