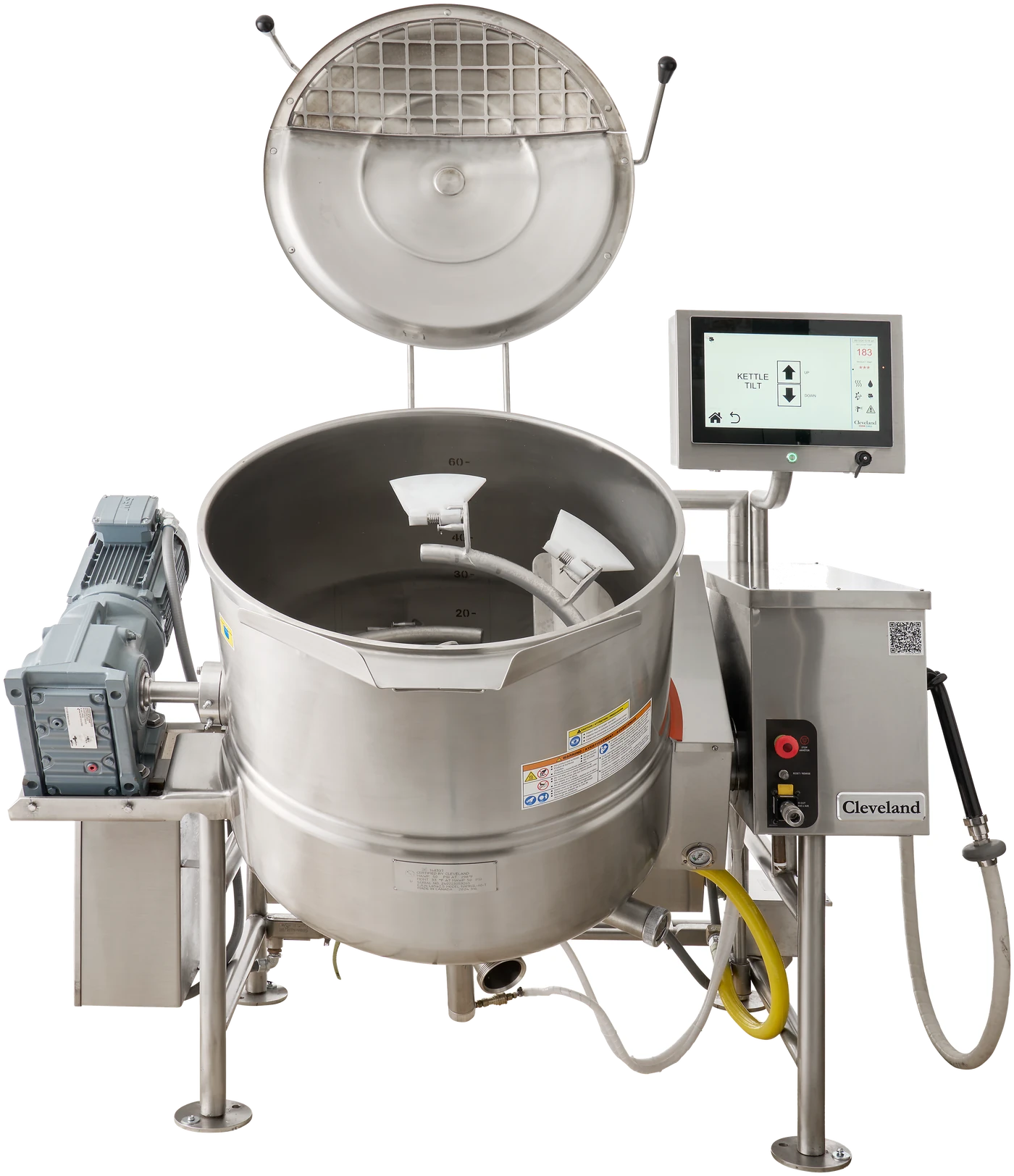

HA-MKGL-HMI Mixer Kettle
Gas Horizontal Agitator, 15" HMI Control60, 80 or 100 Gallon
Engineered for Tomorrow.
Big Batches. One Intuitive Screen.
A control panel that thinks like a chef.
The new 15" HMI UI streamlines operations with an intuitive touch display and a variety of cooking modes — build a batch, save it, and load it again next shift.
Horizontal Agitator
3HP variable-speed mixer arm. Probe, timed, or manual cooking modes.
Uniform batches, bottom to top.
The horizontal agitator does the work a paddle can’t. Spring-loaded Teflon blades ride the full heated surface so nothing sets up on the jacket, while internal fins fold product back through the centre of the batch.
- 3HP motor drive — sized for dense, high-volume product.
- 5 to 20 r.p.m. — variable speed for delicate folds or heavy mixes.
- Full-surface scrape — spring-loaded Teflon blades, no dead zones.
- Internal mixing fins — efficient, uniform product movement.
- Tool-free removal — the agitator comes out for cleaning without tools.
- 3" piston draw-off — air operated, flush mounted, variable control.
Every detail, re-engineered.
Twelve features that ship in the box — built around uniform mixing, fast recovery, and a kettle your team can break down without a toolbox.
15" HMI Control
Intuitive touch display with probe, timed and manual modes, plus recipe create, save and load.
190 M-BTU Power Burner
High efficiency heating system with automatic glow-type ignition for fast heat-up and recovery.
3HP Agitator Drive
Horizontal agitator drive with variable mixer speed control from 5 to 20 r.p.m.
Full-Surface Scrape
Spring-loaded Teflon blades scrape the entire heated surface area — no dead zones on the jacket.
Internal Mixing Fins
Fold product back through the batch for efficient, uniform mixing.
Tool-Free Removal
The agitator comes out for cleaning without the use of tools.
Flush-Mounted Probe
Easily removable temperature probe sits flush to the cooking surface.
Spring-Assisted Cover
Two-piece stainless steel cover with screen guard and interlocking safety system.
50 PSI Steam Jacket
Permanently filled with treated distilled water, with jacket rating and safety valve.
3" Piston Draw-Off
Air operated, flush mounted piston valve with variable control (requires air compressor).
Low-Water Safety
Solid state controls in a plug-in module, with L.E.D. heat cycle and low water indicators.
Type 316 Food Contact
Type 316 stainless on all food contact surfaces; type 304 with #4 finish on kettle and supports.
Also standard: front mounted combination pressure-vacuum gauge · hot and cold water kettle filler with swing spout · gallon markings in 10 gallon increments · insulated heat exchanger · 208V/3Ph/60Hz agitator drive · built to CSA/NSF specifications and accepted for use in USDA inspected facilities.
See it from every angle.
Spin the unit, lift the cover and look straight down into the kettle at the horizontal agitator. Useful for checking clearances, service access and control panel placement before the kettle is ever specified.
Ready to size one for your kitchen?
Talk to a Cleveland Range specialist about capacity, control panel location and accessories — and we’ll spec the HA-MKGL-HMI around your batch volume.
