22CET6.2: SteamChef 6 Booster Electric Boilerless Convection Steamer

Coming End of 2025



Convection Booster Electric Steamer with Automatic Water Fill & Drain, 12 kW Boilerless Counter Type Design

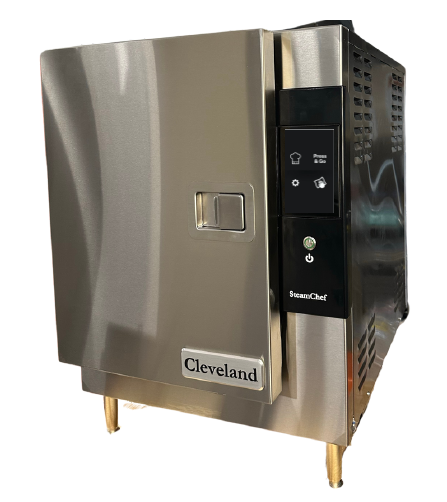

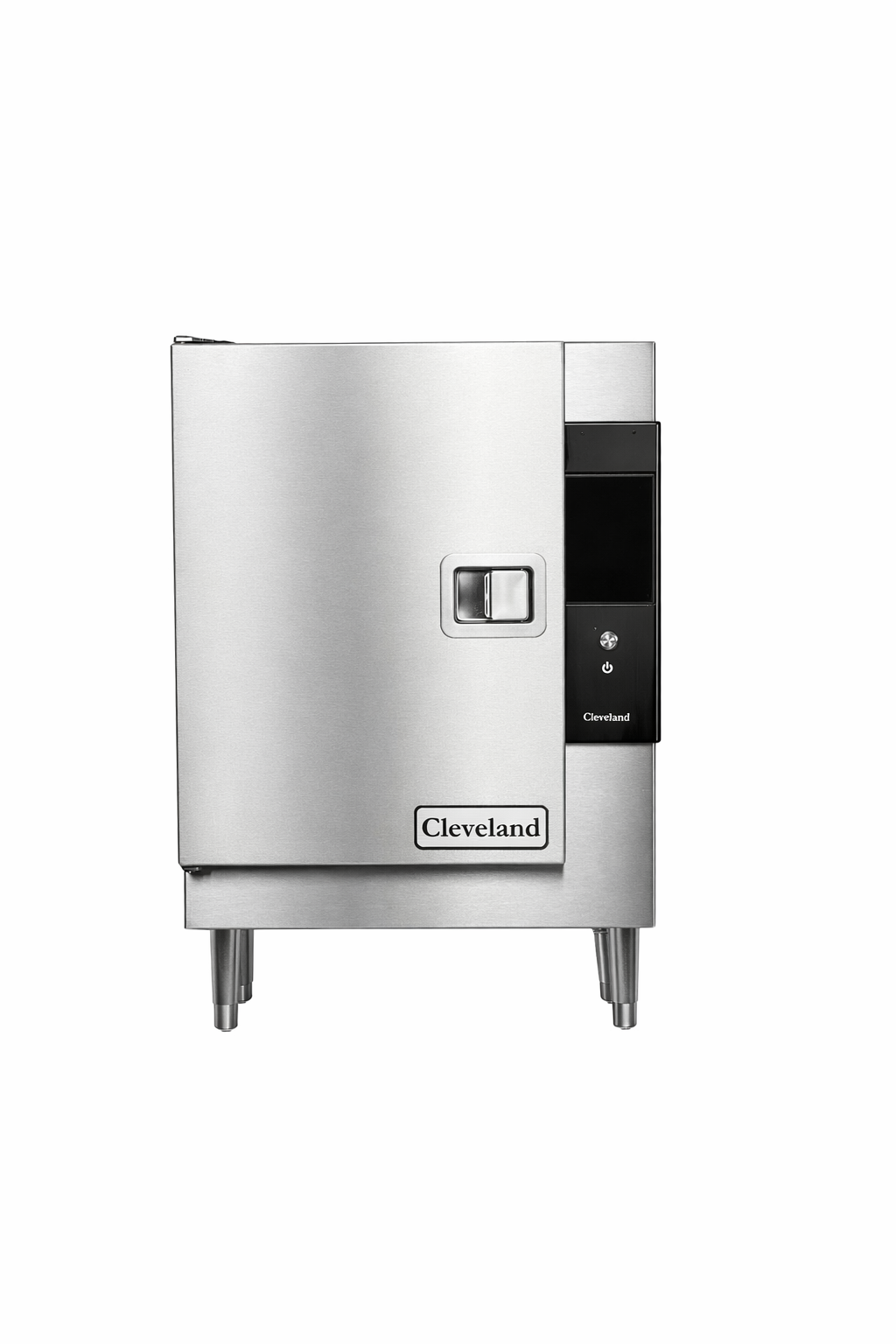

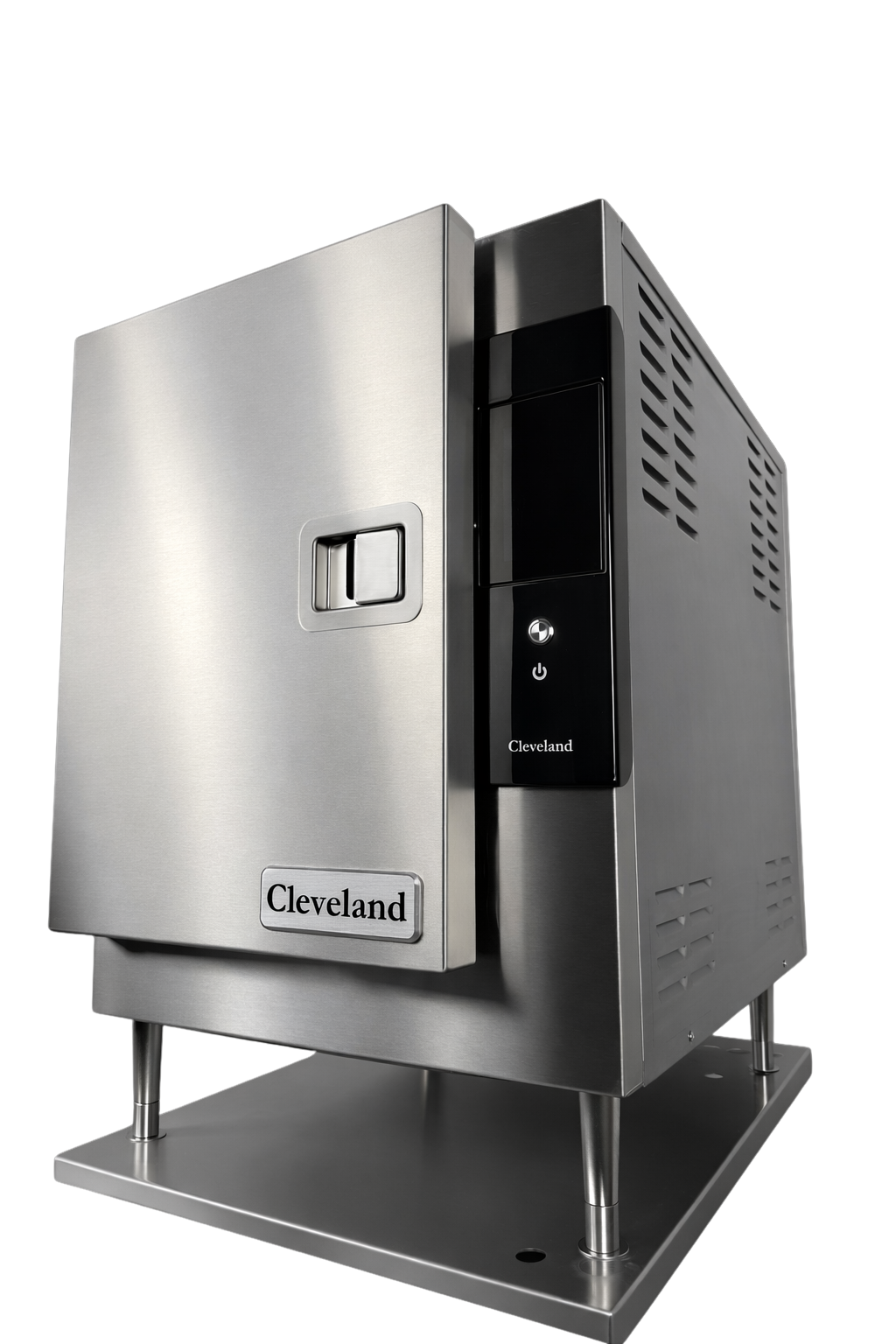

Cleveland SteamChef™ Booster 6.2, model 22CET6.2, one compartment high-speed electric convection steamer. Standard with S50 5″ EasyTouch Controls and Load Compensating Timer. Capacity for six 2.5″ (1/1 G/N, 65 mm) full size steam table pans. 12 kW electric heating elements in aluminum blocks. Automatic water level controls. Heavy gauge stainless steel cooking compartment door and latch. KleanShield™ clean cavity protection. 4″ Adjustable Legs.

Description

Capacity
Cooking capacity for up to six 12″ x 20″ x 2.5″ deep steam table pans.
Design
High-speed electric convection steamer with open style 1.0 gallon water reservoir located at the bottom of the cooking compartment for easy access and maintenance.
KleanShield™
Fan forced convection steam with patented KleanShield™ cooking compartment design. KleanShield™ collects and removes condensate waste from the cooking compartment. This keeps the compartment clean, safe from impurities and easy to maintain. Eliminates foaming and avoids contamination of the reservoir water.
Controls

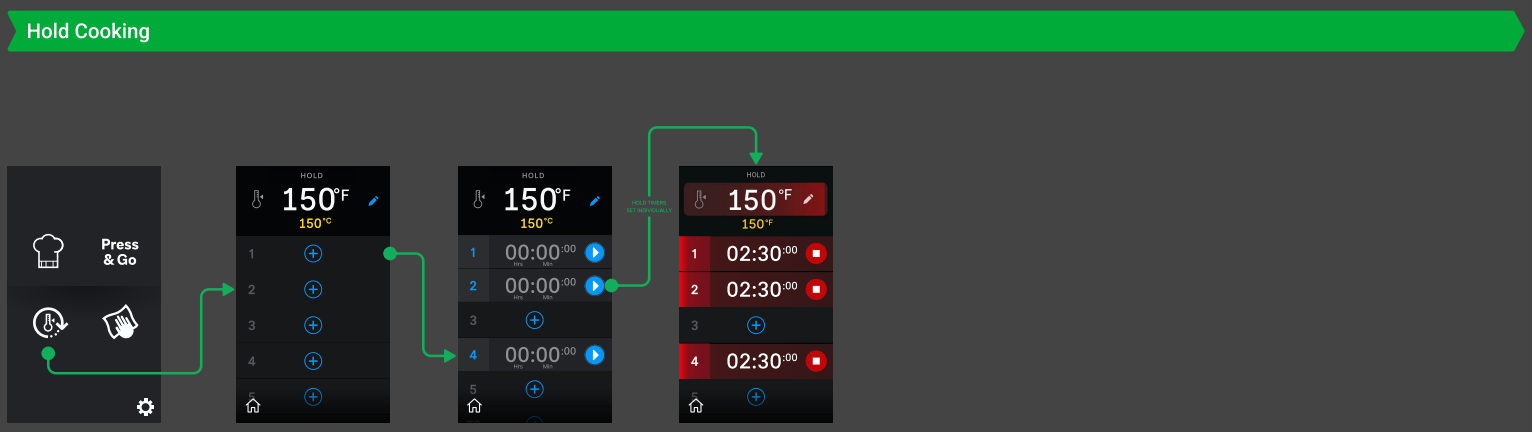

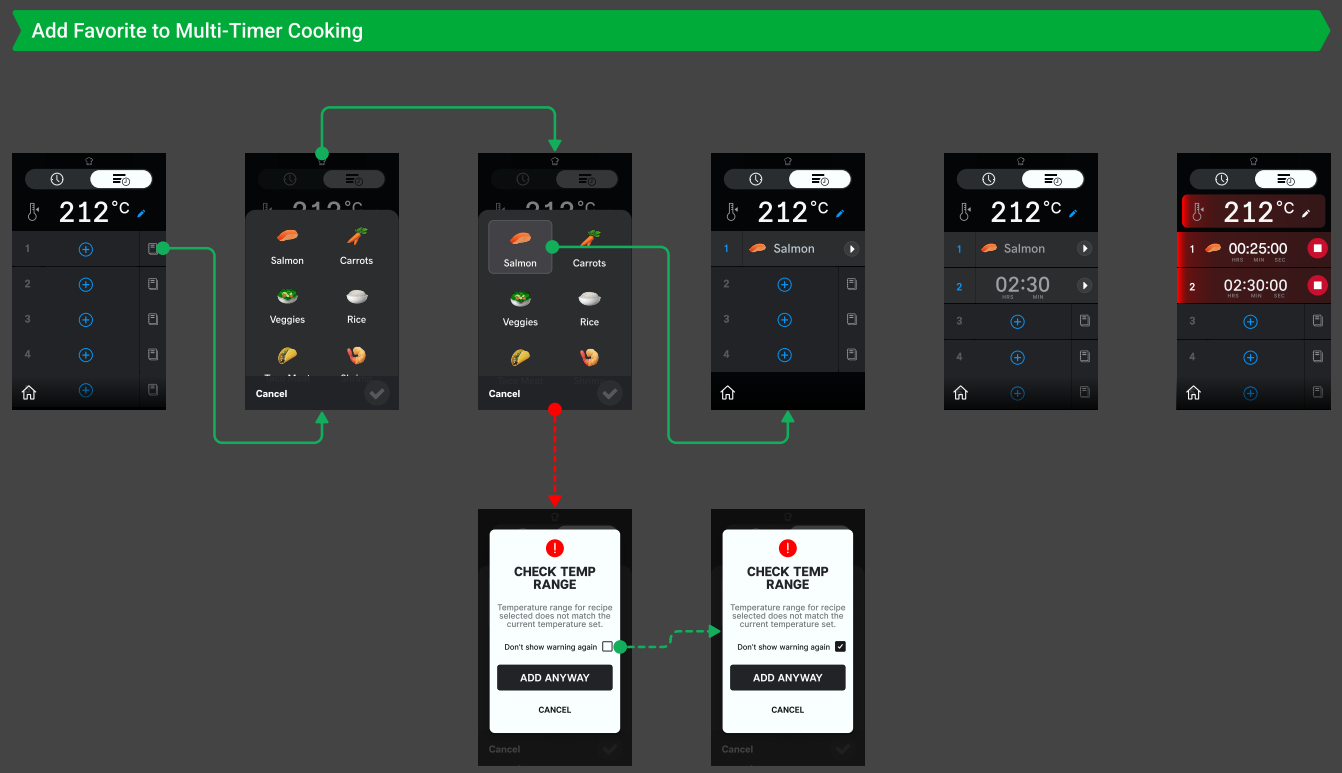

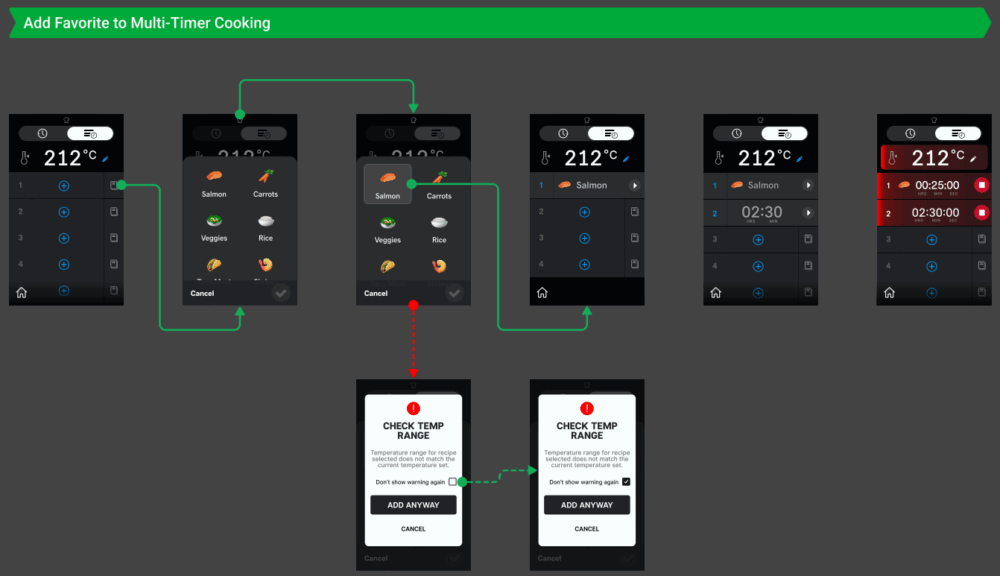

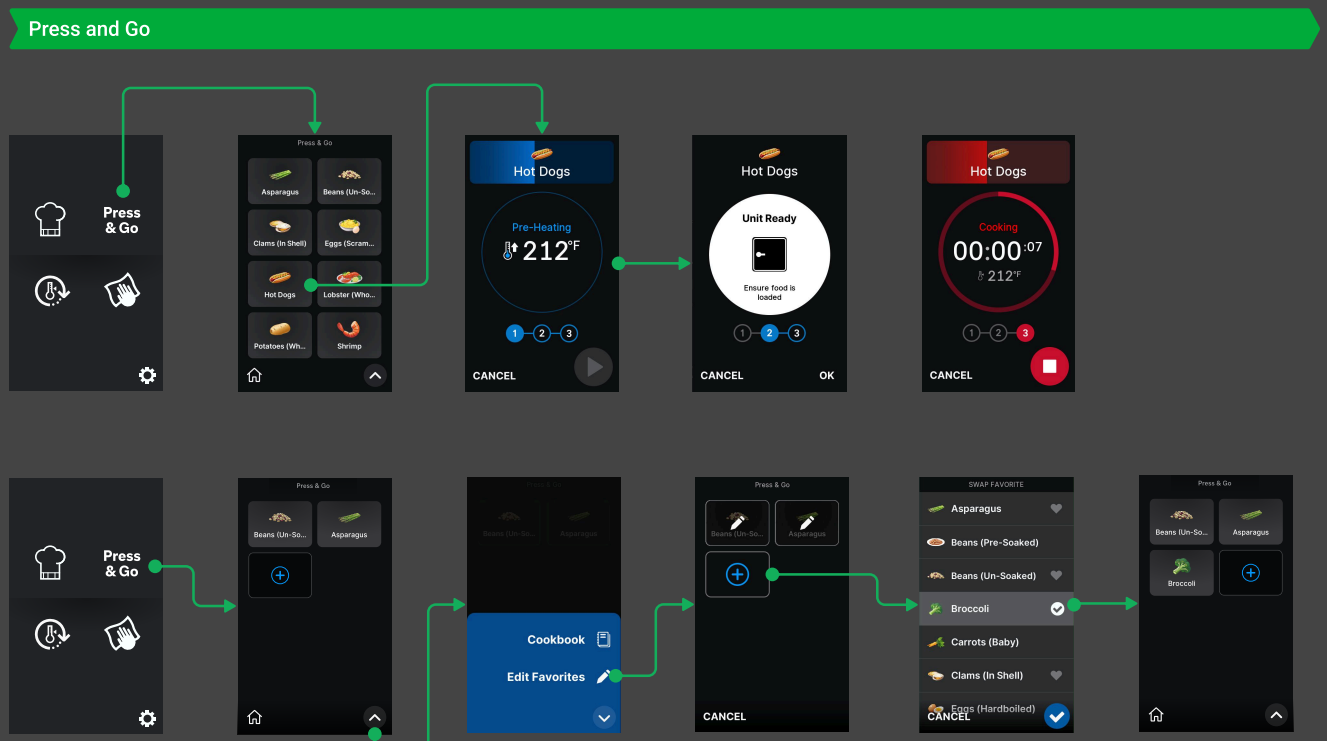

Automatic water level controls, fills when main power switch is turned ON, Low Water and High Water probes inside cooking compartment maintains water levels during cooking, eliminating the need to manually refill and monitor water level during cooking. Additional Safety Overflow Standpipe. 180° standby temperature. High Temperature Safety Shut-off. Steam and Fan Shut Off Control when compartment door is opened.New Controls5″ easyTouch UI interface simplifies operations with accurate touch tune sensitivity. Ability to maintain ±1 Degrees Fahrenheit for all cook modes. Low temperature steam and holding mode. Press & Go Recipes with cookbook storage. Self Diagnostics & Maintenance – error logs and descale steps/notifications. Customized mode icons for intuitive UI experience.
SureCook/Load Compensating Timer
Exclusive SureCook Compartment Controls improves cooking speed and accuracy. New energy saving design reduces water and electric usage. On-demand power control for faster heat up and recovery. Energy saving Standby Feature when not in use. The SureCook timer automatically adjusts the cooking time with the volume of product being cooked, eliminating guesswork on when the product is finished.
Drain
Exclusive SteamChef Automatic Drain Control. Generator Drains when main power is turned OFF via 1/2″ ball valve with micro switch circuitry. Simple 1″ NPT drain connection required with water saving cold water condenser and 3 minute rinse feature.
Door
Left Hand Door Hinging: Compartment Doors hinged on the left, controls on the right. Exclusive, durable 14 gauge stainless steel compartment door and latch withstands abuse and heavy wear. Two piece compartment door with free floating inner door is self adjustable and prevents leaks. Reversible door gasket doubles the life of the gasket.
Legs
Heavy-duty 4″ (102mm) Skid Resistant Adjustable Legs with Flanged Feet.
Awaiting Approvals (Now Energy Star Approved)
Elements
12 kW electric heating element encased in a solid aluminum block for fast and ultra efficient heat transfer. Element never needs deliming because it is not immersed in water.

Additional information

W x D x H

21 5/8" X 34 7/8" X 30.75"

Power Input Type

Electric

Power Output

13.5 N/A

Weight

335 LB

Accessories

Connection Kit
5 Foot (1524mm) FDA Approved National Hose Thread style water connection kit (garden hose thread), 2 required (NHT60)
Door Hinging
Right Hand Door Hinging, Controls on Left (DHR)
Electrical
Single Phase Operation (see back)
ON/OFF Control
ON/OFF Compartment Control only, no Timer (MC)
Water Connection
Single Point Water Connection (SPW)
34" Stand
34" (864mm) High Stainless Steel Stand, for one 22CET6 (UniStand34)
