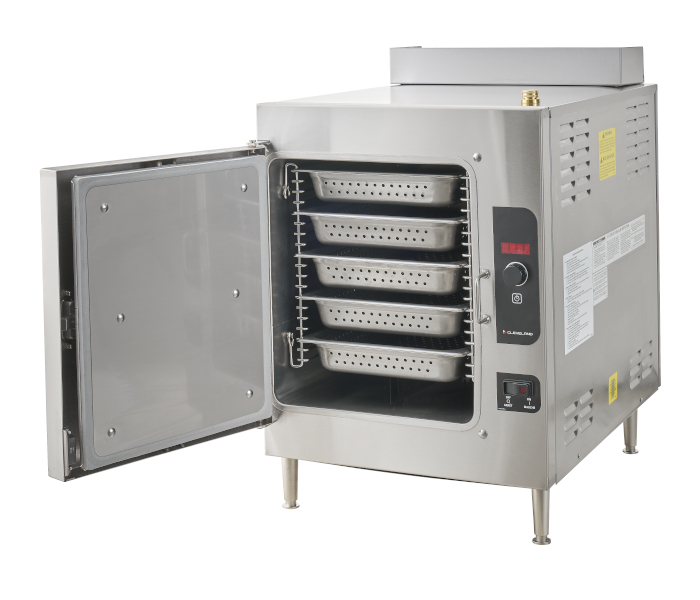

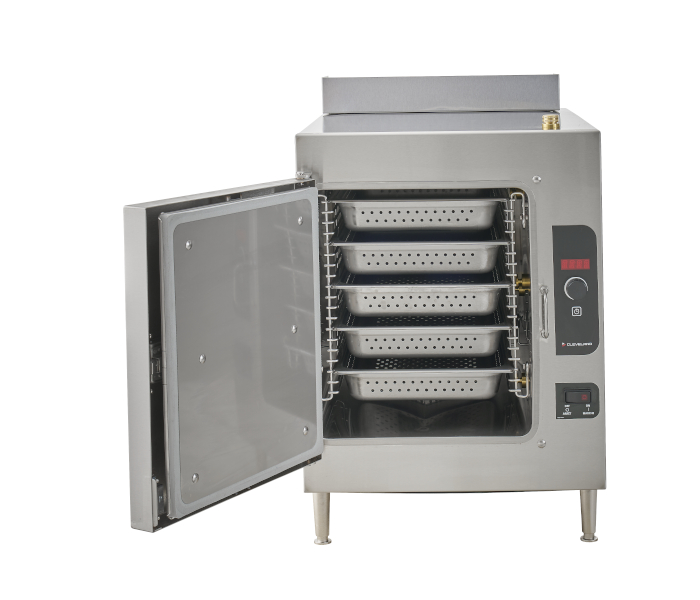

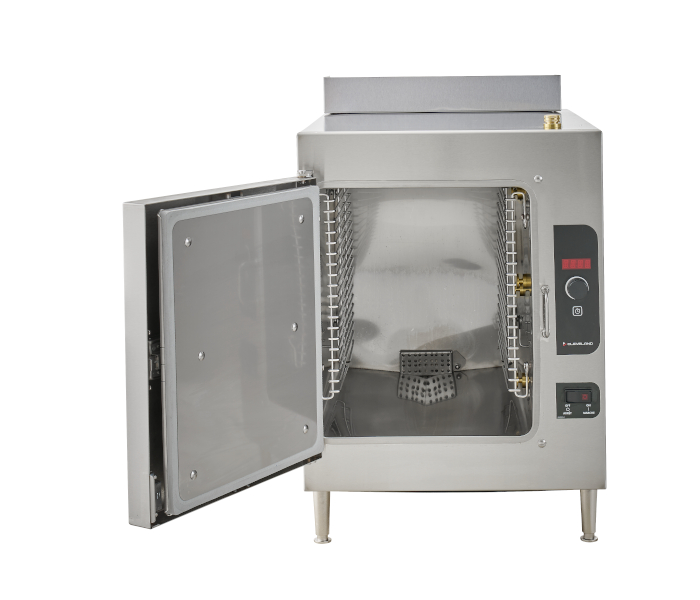

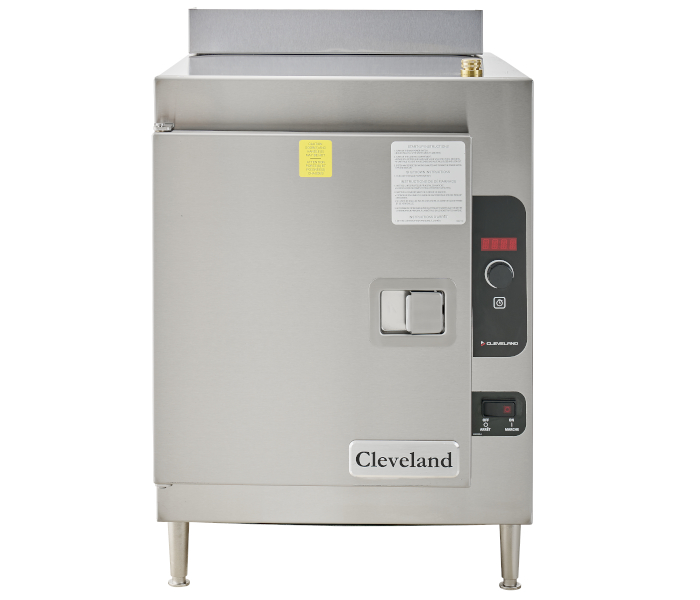

21CGA5: SteamCraft Ultra 5 with gas generator

$15,229.00

COUNTER TYPE DESIGN, PRESSURELESS CONVECTION STEAMER, GAS STEAM GENERATOR, 70,000 BTU

CLEVELAND, SteamCraft‚ Ultra 5, one compartment, Counter-Type Steamer, Model 21-CGA-5, 70 M BTU, heavy duty all Stainless Steel construction; rear mounted, insulated Steam Generator with Remote Probe Type Water Level Controls and Automatic Steam Generator Blowdown with “Water Jet” Drain Cleaning feature.

Description

Left Hand Door Hinging
Compartment Doors hinged left, controls on the right.
Steam Distribution
Exclusive Steam Cooking Distribution System: Exclusive Brass Steam Jets produce a high velocity convection steam without fans. Coved Corner design in cooking compartment distributes heat evenly, and is easy to clean. Creased top & bottom enhance drainage. Cold Water Condenser for each compartment maintains a dry steam. Fully Insulated cooking compartment for thermal efficiency. Removable Stainless Steel Slide Racks.
Generator Drain
Automatic Generator Drain: Contains a “Water Jet” Spray Rinse Drain Cleaning Cycle to keep drain clear.
Controls
One 60 Minute Electro-Mechanical Timer and Switch for manual operation. Audible signal for cooking time completion. Separate Switch for Power “ON/OFF”.
Generator Cleaning Port
Easy access Generator Cleaning Port located on the outside, top of the unit. Not necessary to remove hot panels or rack guides to access.
Generator Cleaning Light
Indicator Light located on the front of the unit warns operator it is time to delime generator.
Stand By Mode
Instant Steam Stand By Mode holds generator at a steaming temperature. Allows unit to start cooking instantly.
Construction
Durable 14 Gauge, Stainless Steel Construction for compartment door, cavity and steam generator.
Remote Probe
Exclusive Automatic Remote Probe Type Water Level Control: Separate from the generator for easy access.
Door Design
Exclusive “Cool to the Touch” Two-Piece Compartment Door Design: Free floating inner door with reversible gasket provides an air tight seal. Stainless Steel Slam/Latch Door Latch mechanism for reliability.
Cooking Capacity
For up to five 12″ x 20″ x 2 1/2″ deep Cafeteria Pans.
Steam Generator
Innovative PowerPak Gas Steam Generator: Naturally Fired 70 MBTU Generator is 72% Efficient. Strong 14 Gauge Stainless Steel Construction. Fully Automatic Electronic Spark Ignition (pilotless).
Electrical
Standard with Cord & Plug for 115 volt controls.

Additional information

W x D x H

21" X 32" X 29"

Power Input Type

Gas – Natural

Power Output

70000 N/A

Primary Power Input

115-120 V x 60 Hz X 1 PH

Accessories

4" Legs
Stainless Steel (LF4)
Additional Pan Racks
For Equipment Stands (PR)
Cafeteria Pans
In depths of 1", 2 1/2" and 4"
Dissolve Descale Solution
6 one gallon container w/quart markings (106174)
Electronic Timer
With Compensating Load Feature (ETC)
Equipment Stand
(UNISTAND34)
ON/OFF Steam Switch
For compartment controls (MC)
Propane Gas Option
(PG)
Shut Off Switch
For Compartment Door Steam (SCS)
Water Filters
Replacement cartridges available



Cleveland Buyers Guide Cleveland-Buyers-Guide
Cleveland Warranty Warranty-Update-May-20-2024

Disclaimer 3/20/25

Specification Sheets KE004046-12-21CGA5
Operating Instructions KE004037-2
