TMKDL-100-T Twin Mixer Kettle, Direct Steam, Tilting

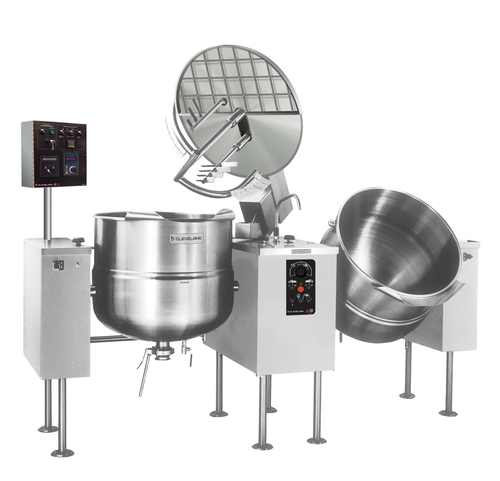

CLEVELAND Tilting Twin Mixer Kettle Model TMKDL

Console/Leg mounted, Direct Steam Mixer Kettles with _____ psi Steam Jacket Ratings. 3 H.P. Hydraulic powered Scraper/Agitator and Bridge Lift. 0-40 rpm Scraper Speed with Variable Scraper to Agitator Ratio from 1-1 to 8-1. Type 316 Stainless Steel interior, Stainless Steel enclosed Mixer Bridge. All Plumbing, Electrical and Hydraulics enclosed in Consoles. Gallon markings, Bayonet Mounted Scraper and Agitator. 3″ Butterfly Valve. Hot and Cold Water Faucet. Steam Control Kit. Safety Device prevents high speed starts; Mixer stops when Bridge is lifted. Kettles and all exterior surfaces are Stainless Steel. 316 Stainless Steel Interior.

Description

3 HorsePower Hydraulic powered Agitator, Scraper and Bridge Lift
Infinitely Variable Scraper Speed Control from 0 to 40 rpm
Infinitely Variable Ratio between Scraper and Agitator: Agitator rotates from 0 to 8 times the speed of the Scraper
Removable (without tools) Nylon Blades scrape the entire Jacketed Surface
Safety Device prevents high speed Starts
Mixing stops when bridge is lifted – includes safety cover and screen
Agitator and Scraper are Bayonet Mounted for easy removal
Factory installed Chrome-Plated Steam Control Kit
Tilt Mechanism of roller bearings and case hardened self-locking worm and segment gear
Power Tilt standard on 150 gallon model
3″ diameter Quick Opening Butterfly Valve
Hot and Cold Water Faucet
Condensate Valve with Insulated Handle
50 psi Steam Jacket Rating on 40 – 100 gallon models
35 psi Steam Jacket Rating on 125 & 150 gallon models
All Plumbing, Electrical, Hydraulics enclosed in Stainless Steel Consoles
Enclosed, 10 Gauge Stainless Steel hydraulically operated Mixer Bridge
Kettles and all exterior surface are Stainless Steel
Large Pouring Lip
Gallon Markings stamped into Scraper Shaft
Level adjustable solid feet (for floor bolting)
Standard 208-240 volts, 60 Hz, 3 phase, 4 wire
Typical approvals include NSF and ASME
316 Stainless Steel Interior
Two piece cover with safety screen

Additional information

Accessories	•Product Time/Temperature Controls and Indicators (DTCI) •Automatic Water Cooling (AWC-2) •Alternate Draw-Off Valves •Food Strainer (FS) •Flow Diverter (FD) •Pan Carrier (PCK) •Swing Funnels (SF-1 or SF-2) •Pressure Reducing Valve (PRV) •Power Tilt (PT) where not standard •Kettle Accessory Kit (KAK) includes: • Clean-up Brush (CB)• 36˝ Kettle Paddle (KP) • 36˝ Kettle Whip (KW)• 36˝ Kettle Brush (KB) • Draw-off Brush (DB)• 24 oz. Ladle (KL) •Water Meter (GMF or LMF) built into system •Accessories for connection to food pumps •Leg Extensions (ELTMK) •Digital Data Logger for Time and Temperater

Accessories

•Product Time/Temperature Controls and Indicators (DTCI)
•Automatic Water Cooling (AWC-2)
•Alternate Draw-Off Valves
•Food Strainer (FS)
•Flow Diverter (FD)
•Pan Carrier (PCK)
•Swing Funnels (SF-1 or SF-2)
•Pressure Reducing Valve (PRV)
•Power Tilt (PT) where not standard
•Kettle Accessory Kit (KAK) includes:
• Clean-up Brush (CB)• 36˝ Kettle Paddle (KP)
• 36˝ Kettle Whip (KW)• 36˝ Kettle Brush (KB)
• Draw-off Brush (DB)• 24 oz. Ladle (KL)
•Water Meter (GMF or LMF) built into system
•Accessories for connection to food pumps
•Leg Extensions (ELTMK)
•Digital Data Logger for Time and Temperater
