Name: KDL60: Direct steam kettles, Tri-leg or Pedestal stationary
SKU: 37298
Availability: InStock

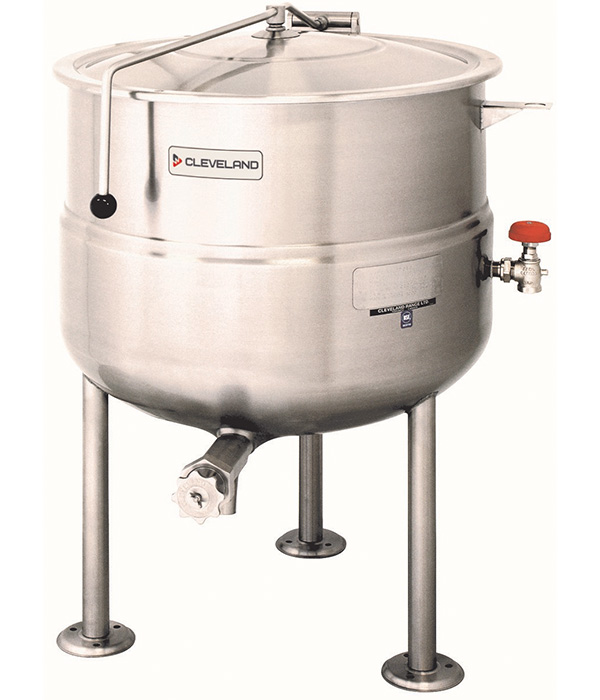

KDL60: Direct steam kettles, Tri-leg or Pedestal stationary

$15,466.00

2/3 STEAM JACKETED, 25 – 250 GALLONS (100 – 950 LITERS), Tri-leg or Pedestal

CLEVELAND, Direct Steam Kettle, Tri-leg or Pedestal stationary, 2/3 Steam Jacketed, Type 304 Stainless Steel with 50 psi Steam Jacket. Supports to be Stainless Steel. Includes spring-assisted, Domed Cover and 2″ Tangent Draw-off Valve; heavy re-enforced Rolled Rim. To operate, connect directly to a steam source supplying from 5 to 45 psi steam.

Description

Construction
Type 304 Stainless Steel construction, with #4 finish on kettle and supports

Rating
– 50 psi Steam Jacket Rating- 50 psi chrome plated Safety Valve

Valve
2″ diameter Tangent Draw-off Valve with Drain Strainer

Spring-Assisted Cover
Domed, hinged, one-piece rotatable (not available on KDL-250)

Condensate Drain Valve
Insulated handle

Control
Steam Control Inlet Valve

Faucet Mounting
Bracket provided

Supports
For Tri-leg Models: Tri-leg supports of 1.5/8″ O.D., Type 304 Stainless Steel tubular construction, with level adjustable Flanged Feet for Floor Bolting

Supports
For Pedestal Models: Pedestal support of Type 304 Stainless Steel with 3/4″ thick floor plate, (level adjustable for sloping floors), comes with Stainless Steel Collar for sealing

Additional information

Accessories

Cooking Baskets and Tri-Basket Supports
(BS and TBS)
Drain Strainers
(DS-)
Gallon Markings
(KM)
Hot and Cold Water Faucet
Comes with Swing Spout (DPK)
Kettle Accessory Kit (KAK)
Clean-up Brush (CB), 36" Kettle Paddle (KP)36" Kettle Whip (KW), 36" Kettle Brush (KB)Draw-off Brush (DB), 24 oz. Ladle (KL)
Lift-off Cover
One piece, (CL-)
Measuring Strips
(MS)
Steam Control Kit
Includes: Steam Trap, Condensate Strainer, Check Valve, nipples and fittings, factory assembled and mounted on kettle (SCK1)
Swing Funnels for drain
(SF)
Type 316 Stainless Steel kettle interior
For high acid food products (316)

Cleveland Buyers Guide	Cleveland-Buyers-Guide
Cleveland Warranty	Warranty-Update-May-20-2024 Disclaimer 3/20/25
Specification Sheets	KE004046-49-KDL (2)
Operating Instructions	KDL-KDLT-Manual (2)
