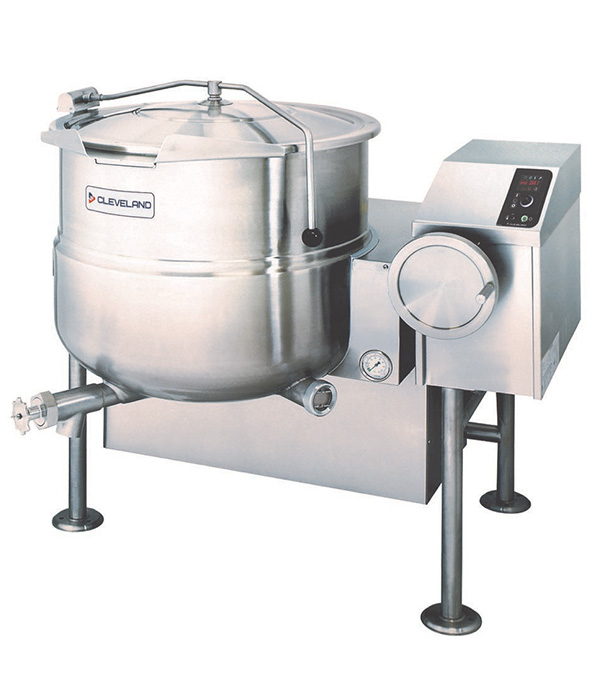

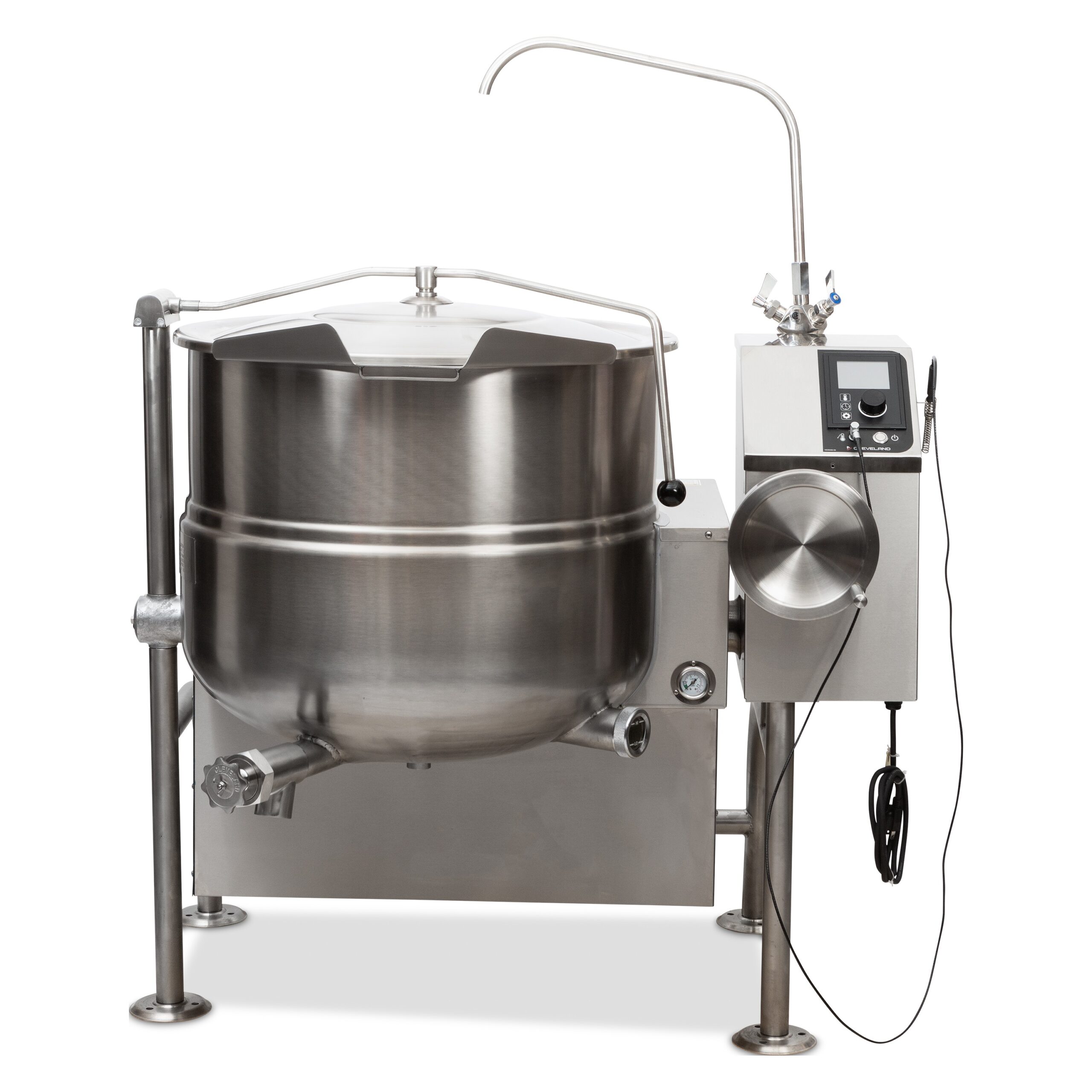

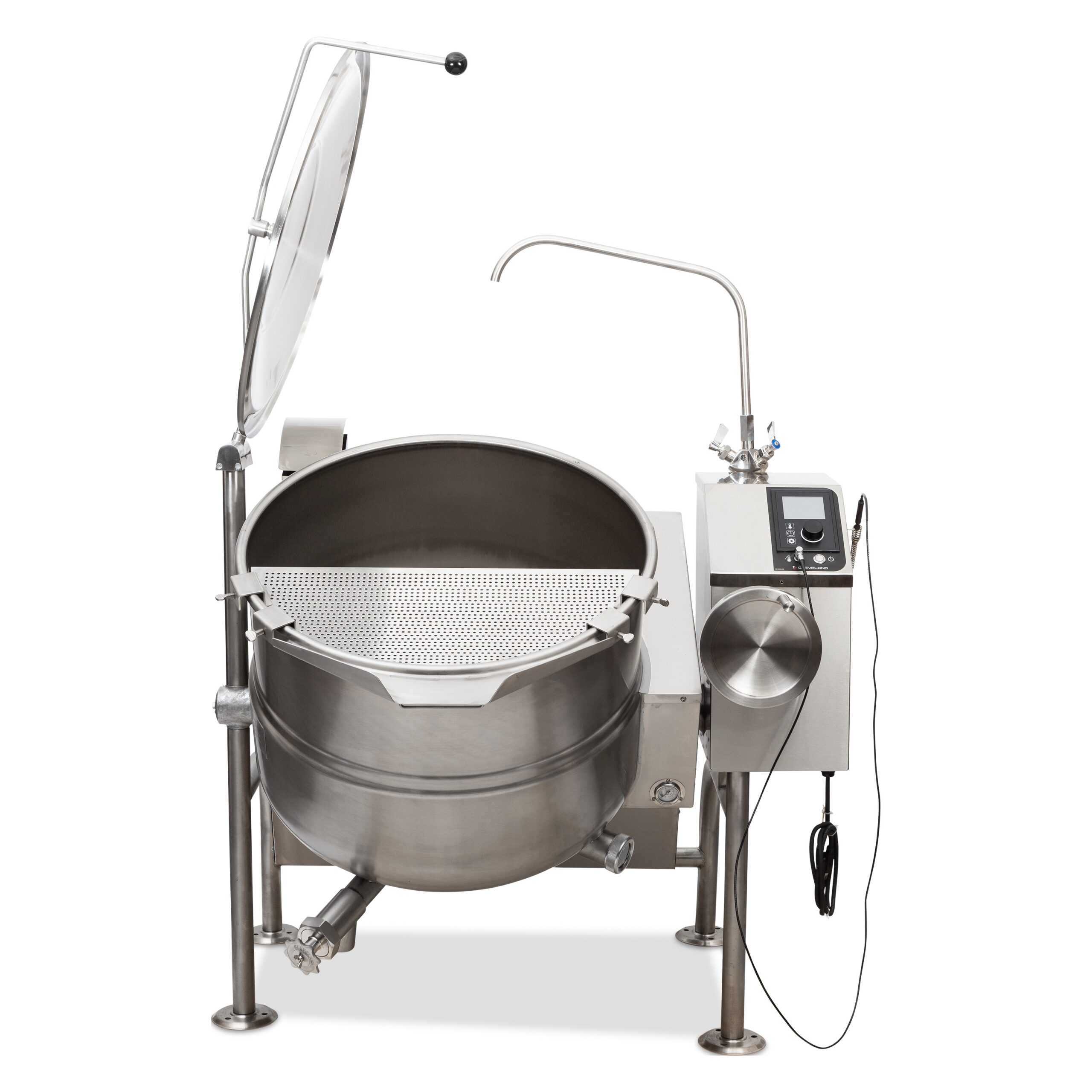

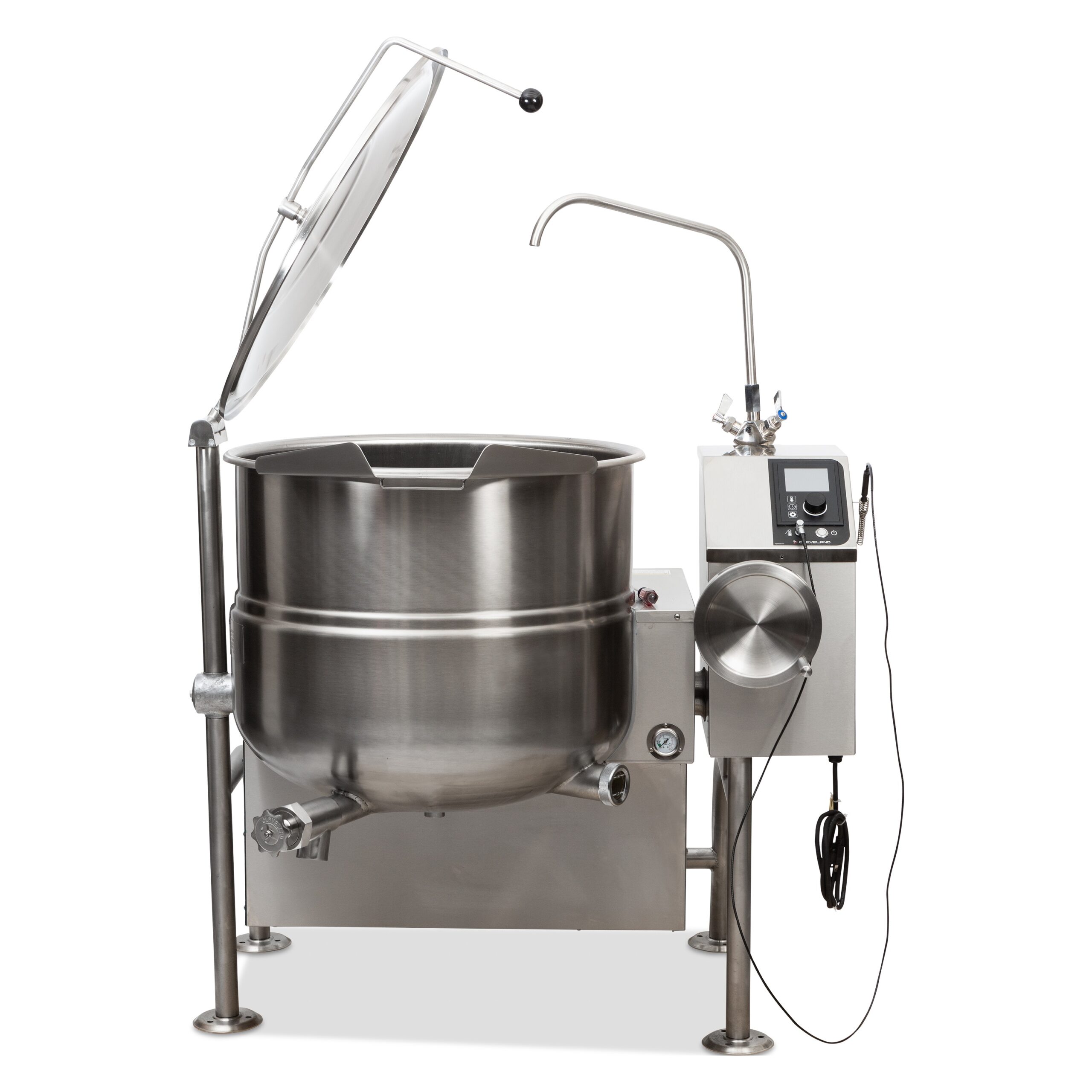

KGL-T: Gas steam kettle, tilting

2/3 STEAM JACKETED KETTLE "SPLASH PROOF SERIES" 40, 60, or 80 GALLONS (150, 225, or 300 LITERS

CLEVELAND, Gas-Fired Tilting Kettle, 2/3 Steam Jacketed, Power Burner Heating System, Insulated Heat Exchanger, 50 psi Steam Jacket Rating. Infinite Variable Temperature Control, L.E.D. indicators for Heat Cycle and Low Water Warning, Automatic Ignition System.

Macro Values (These are set programatically in the App_Code/Manitowoc/Classes/Manitowoc.cs under ProductHelpers.SetProductMacros()
ProductNodeAliasPath: /Products-Parts-and-Accessories/Products/Cleveland/Steam-Jacketed-Kettles/Floor-Models/KGL-T-Gas-steam-kettle,-tilting
ValidVariantIDs: 46336
ValidSkuIDs: 46341
DocAssetList: tvmln|tmyin|dhkmn|uvbye|awsjl|vrteo|qotms|kbdcm|fhvqt
ImgAssetList: bxfxug
VidAssetList: nsaab
Features: /Products-Parts-and-Accessories/Products/Cleveland/Steam-Jacketed-Kettles/Floor-Models/KGL-T-Gas-steam-kettle,-tilting/%
Categories: standardkettles
Attributes: floor
Brands: cle
Related Products:
Related Variants:
Related Skus:
DisplayFeatures: True
DisplayTechSpecs: False
DisplayAccessories: True
  • Construction
    • Type 304 Stainless Steel construction, with #4 finish on kettle and supports
  • Control Panel
    • Precise, consistent temperature control: less than 1°C variance (ideal for simmering),L.E.D. Indicators for Heat Cycle and Low Water Warning,Power "ON/OFF" Switch
  • Controls
    • Solid State Controls, for Temperature and Low Water Safety, in a plug-in Control Module
  • Electrical
    • Standard voltage is 115 volts, 60 Hz, single-phase, supplied with cord and plug
  • Faucet Mounting Bracket
    • (FBK)
  • Gas
    • Standard for natural gas operation
  • Heat Exchanger
    • Insulated
  • Heat-Up and Recovery
    • Fast Heat-up and Recovery Time, 140M BTU's on 40 gallon models, 190M BTU's on 60 gallon and larger
  • Ignition System
    • Automatic
  • Jacket Rating
    • 50 psi steam jacket rating for higher cooking temperatures
  • Legs
    • Support Legs with level adjustable feet, flanged for floor bolting.
  • Power Burner
    • High efficiency Power Burner Heating System(62% to 65% efficiency)
  • Pressure Gauge
    • Front mounted combination Pressure/Vacuum Gauge
  • Steam Jacket
    • Permanently filled with treated, distilled water. Venting and/or refilling not requiredTwelve gallon model with a 53,000 BTU firing rate, and 34,450 BTU directly applied to the product.
  • Tilting
    • Tilt Mechanism of roller bearings and case hardened self-locking worm and segment gear.
3" Draw-Off Valve
3" diameter Tangent Draw-Off Valve with Drain Strainer (TD3)
316 Stainless Steel Liner
(316G)
Automatic Water Meter
(GMF or LMF)

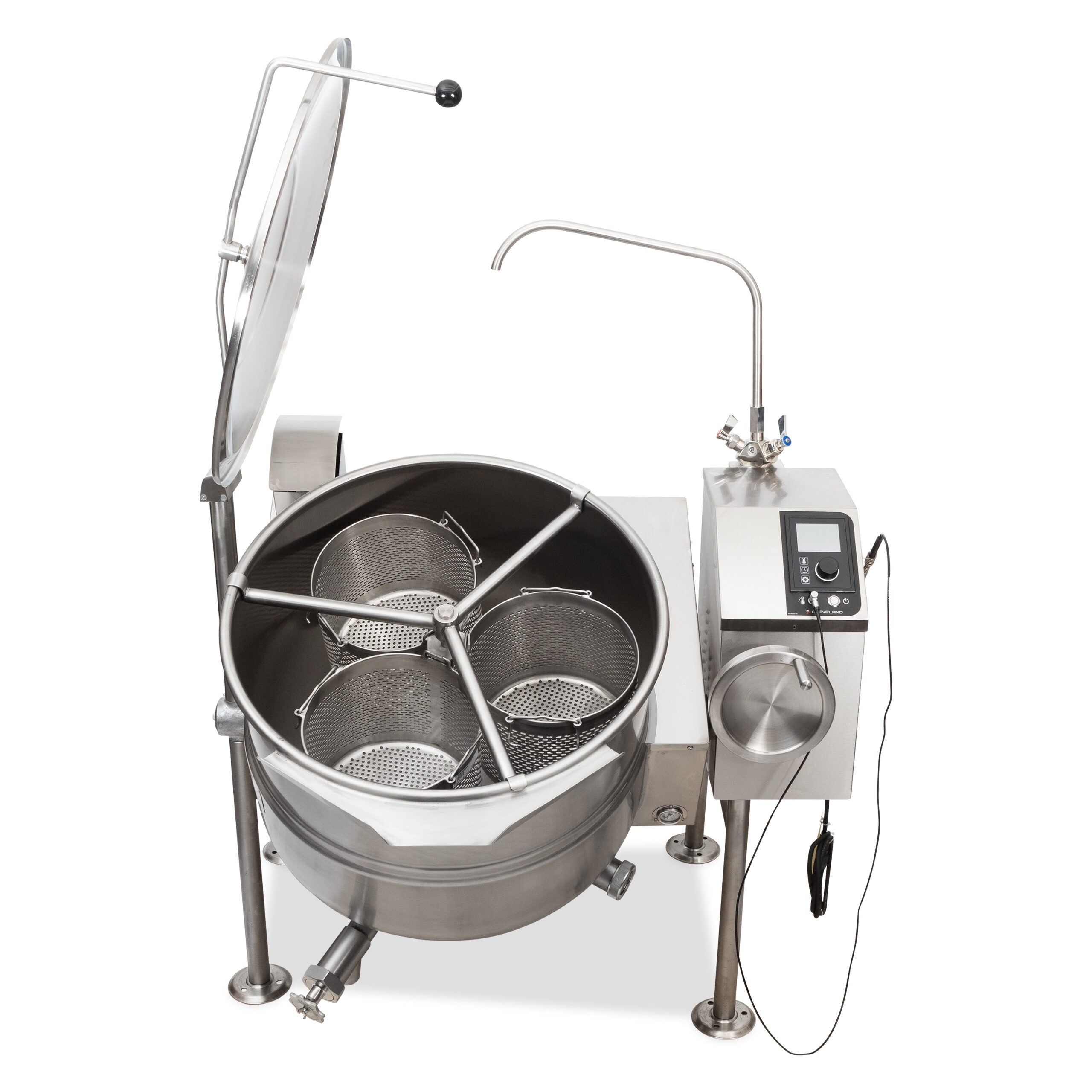

Cooking Baskets and Tri-Basket Supports
(BS and TBS)
Drain Strainers
(DS-)
Faucet
Hot and cold water faucet (DPK), or Cold Water (SPK). Requires bracket (FBKT)
Gas
Propane Gas Operation (PG)
Heat Deflector Shield
(HS001)
Kettle Accessory Kit (KAK)
Clean-up Brush (CB), 36" Kettle Paddle (KP)36" Kettle Whip (KW), 36" Kettle Brush (KB)Draw-off Brush (DB), 24 oz. Ladle (KL)
Measuring Strip
(MS)

Brochure & Sell Sheets

Kettle Family Brochure

CAD Symbols (KCL Cutsheets)

AutoCAD Drawings

Owner Instruction Manual

SE95003-1 R8 (Kettles Floor Gas) Use and Care English.pdf

SE95003-1 R8 (Kettles Floor Gas) Use and Care French.pdf

Menu or Recipe Guide

Kettle Cookbook

Service Manual

SE95003-1 R8 (Kettles Floor Gas) 220V Addendum.pdf

SE95003-1 R8 (Kettles Floor Gas) Australian Addendum.pdf

SE95003-1 R8 (Kettles Floor Gas) Service.pdf

Specification Sheets

LEG TYPE, GAS-FIRED KETTLES“SPLASH PROOF SERIES” 40, 60, OR 80 GALLONS
