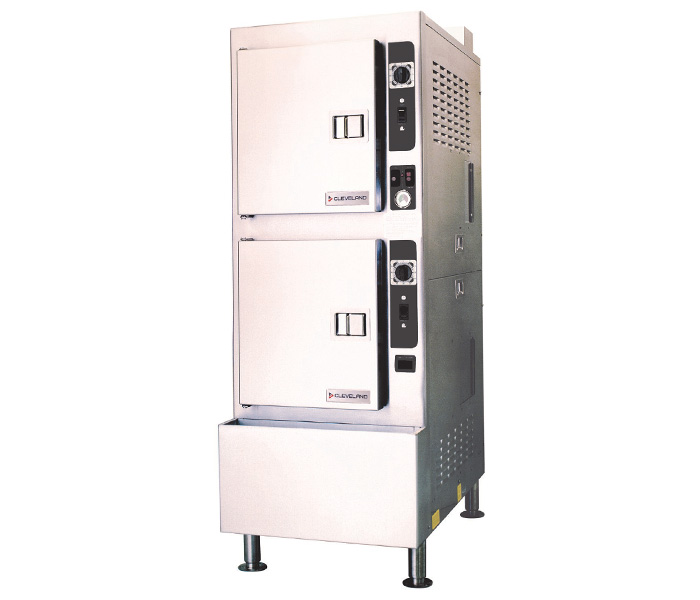

24CGA102 Gemini 10 convection steamer with gas generator

$28,285.00

TWO COMPARTMENT FLOOR MODEL DESIGN PRESSURELESS CONVECTION STEAMER TWIN, INDEPENDENT GAS-FIRED GENERATORS

Cleveland Convection Steamer series SteamCraft‚ Gemini 10, Model 24-CGA-10.2, Twin Gas Atmospheric Steam Generator, 72M BTU’s input per compartment. Independent steam generator, gas valve and water level control system. Automatic Generator Blowdown. Steam Generator with Automatic Water Fill on start up. Exclusive remote probe-type water level controls. Exclusive Brass “Steam Jet” distribution system. Two-piece free-floating compartment door. Type 430 Stainless Steel exterior and cooking compartments. Pullout service drawer for controls and Gemini Drain/Power Control System. Exclusive Cold Water Condenser design. Choice of Compartment Controls. Manual and Gemini Drain/Power Control System.

Category:

Description

Capacity
Each compartment has cooking capacity for 5 each 12″ x 20″ x 2 1/2″ Steam Table Pans
Cleaning Light
Light for each compartment warns the operator to delime generator
Independent Compartments
Totally independent cooking compartments, each has its’ own generator, gas valve and water level controls – no shared components
Power Burner
Exclusive High Efficiency Gas Power Burner (forced air) Generator: Produces more steam for faster cooking while lowering operating costs (72M BTU’s per compartment)
Easy Access Cleaning Port
Easy Access Cleaning Port: Each generator has a deliming port located on the outside, top of the unit
Standby Mode
Holds generator at a steaming temperature, allows unit to start cooking quickly
Controls
Each compartment has one, 60-Minute Electro-Mechanical Timer with “SureCook” load compensating feature. Manual Bypass Switch for constant steaming.
Door Construction
Durable 14 Gauge, 304 Stainless Steel construction for compartment door, cooking cavity and steam generator
Slammable Door
Exclusive Two-Piece Compartment door: Slammable, self-adjusting door provides and airtight seal, reversable door gasket for extended life
Exclusive Control System
Exclusive Gemini Drain/Power Control System: Simple, reliable 1/2″ ball valve style drain automatically turns power ON/OFF
Steam Jets
Exclusive Brass Steam Jets distribute steam even throughout cooking compartment
Front -Access Servicing
Easy, Front -Access Generator Controls comes with a pullout drawer for simple servicing of unit
Legs
6″ Stainless Steel Adjustable Legs with Flanged Feet
Safety Switch
Compartment Steam Shut-Off Switch when compartment door is opened

Additional information

W x D x H

24" x 33" x 65.5"

Power Input Type

Gas – Natural

Power Output

72000 N/A

Weight

565 lb

Primary Power Input

115-120 V x 60 Hz X 1 PH

Accessories

Cafeteria Pans
In depths of 1", 2 1/2" and 4"
Dissolve Descale Solution
6 one gallon container w/quart markings (106174)
Electronic Timer
With Compensating Load Feature (ETC)
ON/OFF Steam Switch
For compartment controls (MC)
Propane Gas
(PG)
Water Filters
Replacement cartridges available
